How to connect fiber optic cabling in a cable tray

To connect fiber optic cables inside a cable tray, carefully route the cables respecting bend radius, secure them in splice trays, and perform either fusion or mechanical splicing for reliable connections.

Step 1: Prepare the Cable Tray

Choose the appropriate tray type based on your installation environment. Wire basket trays are ideal for data centers with many small cables, while ladder trays are better for backbone cables over long distances . Ensure the tray is properly supported, straight, and free of sharp edges that could damage the fiber . Maintain a bend radius of at least 10 times the cable diameter when the cable is static in the tray to prevent micro-cracks in the fiber .

Step 2: Route and Secure Fiber Cables

• Avoid pulling directly on the glass fiber; use the strength members (Kevlar yarn or central rod) to handle tension .
• Use large-radius corners instead of sharp 90-degree bends to reduce signal loss .
• Organize cables neatly along the tray, leaving enough slack for future maintenance or service loops .

Step 3: Prepare Fibers for Splicing

• Strip the outer jacket using fiber optic strippers, exposing the inner fibers without causing microbends .
• Remove buffer tubes carefully to access individual fibers .
• Clean fibers with alcohol wipes and lint-free cloths to remove dust or debris .
• Cleave the fiber ends at a precise right angle using a precision cleaver for optimal splicing .

Step 4: Splice Fibers in a Splice Tray

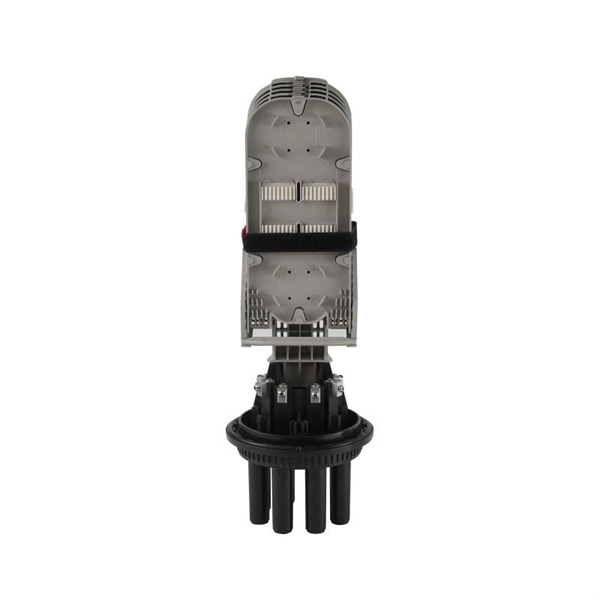

• Place fibers into a fiber splice tray inside a fiber enclosure to protect and organize them .
• Perform fusion splicing for permanent, low-loss connections or mechanical splicing for faster installation without specialized equipment .
• Secure spliced fibers in the tray slots or compartments to prevent movement and maintain bend radius .
• Use heat shrink protection tubes or other protective covers to reinforce the splice .

Step 5: Labeling and Documentation

• Label each fiber and splice according to TIA-606-C standards for easy identification and future maintenance .
• Document the routing, splice locations, and any service loops to ensure long-term network reliability .

Step 6: Final Checks

• Verify that all fibers are properly secured, with no sharp bends or tension on the glass fiber .
• Test the spliced fibers for signal loss and continuity before closing the tray .
• Ensure the tray cover is properly installed to protect fibers from dust and mechanical damage . Following these steps ensures safe, organized, and low-loss fiber optic connections inside a cable tray, providing long-term stability and ease of maintenance.
