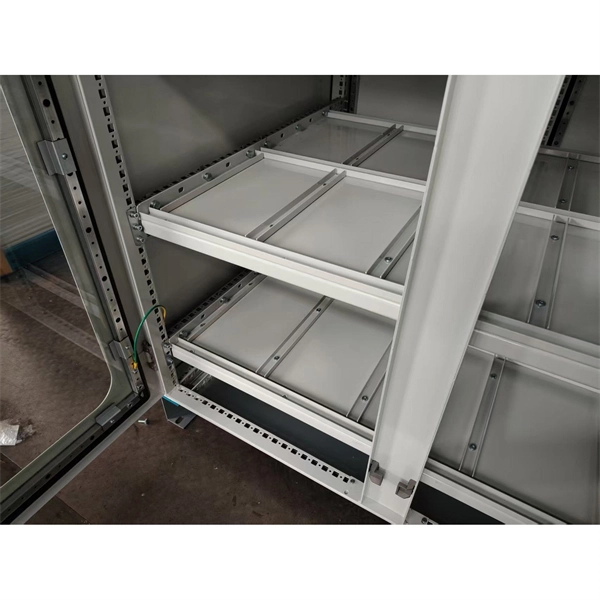

Wiring method for distribution box module

A distribution box module is wired by connecting the main supply to the main MCB, routing power through protective devices like RCCBs, and distributing it to branch MCBs with proper neutral and earth connections.

Components of a Distribution Box

A typical distribution box (DB) includes:

• Main MCB (Double Pole): Acts as the main switch, handling the full input supply.
• Branch MCBs (Single or Double Pole): Protect individual circuits or special loads.
• RCCB (Residual Current Circuit Breaker): Provides protection against leakage currents and electrical shocks.
• Neutral and Earth Links: Distribute neutral and provide grounding for safety.
• Bus Bars and Indication Lights: Facilitate organized connections and status monitoring .

Step-by-Step Wiring Procedure

1. Main Supply Connection: Connect the incoming phase and neutral wires to the input terminals of the main MCB. This MCB controls the overall power supply to the DB .
2. RCCB Integration: Connect the output of the main MCB to the input of the RCCB. The RCCB output then feeds the branch MCBs, ensuring protection against leakage currents .
3. Branch Circuit Wiring: Connect each branch MCB to its respective load. Single-pole MCBs are typically used for standard loads, while double-pole MCBs may be used for high-power or special loads .
4. Neutral Distribution: Connect the neutral wires from all loads to the neutral link inside the DB. This ensures a common return path for current .
5. Earthing: Connect the earth wires from the supply and all loads to the earth link to prevent electrical hazards .
6. Wire Management: Route wires neatly, using plastic ties to bind them. Maintain uniform spacing and avoid crossing wires unnecessarily. Mark AC, DC, or voltage levels clearly for safety .
7. Safety Inspection: After wiring, perform a thorough inspection to check for short circuits, loose connections, or overload risks before powering the system .

Wiring Layout Tips

• Left-to-Right Wiring: Typically, wiring from the main circuit breaker to branch breakers is done on the left side, and outgoing wires to loads are routed on the right .
• Load Segregation: Group circuits logically (lighting, sockets, appliances) to simplify maintenance and troubleshooting.
• Use of Smart DBs: Modern DBs may include energy monitoring units and communication modules for real-time monitoring and automation . Following these steps ensures a safe, organized, and efficient distribution box wiring, minimizing the risk of electrical faults and improving system reliability.
