Fiber distribution box wire splicing

A fiber distribution box (FDB) securely organizes, splices, and distributes optical fibers, protecting connections and enabling efficient network management.

Overview of Fiber Distribution Boxes

A fiber distribution box is a passive enclosure designed to manage optical fibers by providing secure splicing, termination, and distribution points. It is commonly used in FTTH (Fiber to the Home) and PON (Passive Optical Network) deployments to ensure reliable optical performance and mechanical protection of fibers ( ). FDBs can be installed indoors or outdoors, with materials like ABS, ABS+PC, or SMC offering varying levels of impact resistance, UV tolerance, and weather durability ( ).

Components and Structure

Key components of a fiber distribution box include:

• Splice trays or cassettes: These hold the spliced fibers and provide storage for excess fiber length. They are often removable and stackable, allowing easy access for maintenance ( ).

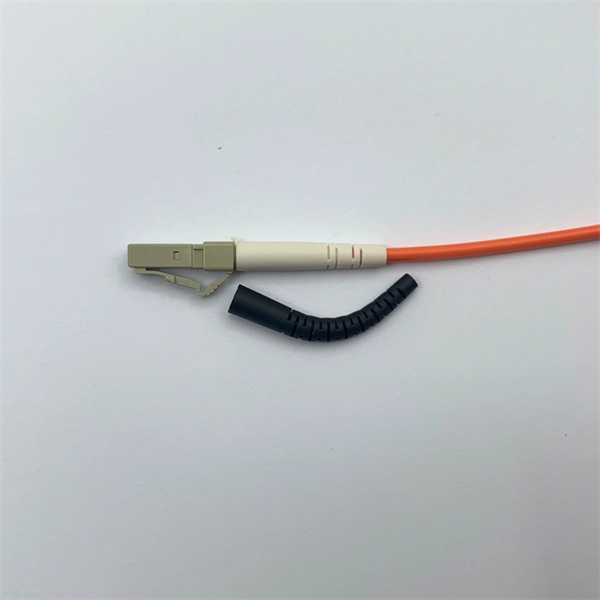

• Adapters and connectors: The front panel typically contains connectors such as LC, SC, E2000®, or ST, enabling connection to patch cables or active devices ( ).
• Cable routing components: Internal guides and channels organize incoming and outgoing fibers, preventing bending or stress that could degrade signal quality ( ).
• Housing: The enclosure protects fibers from environmental factors, with IP ratings indicating the level of dust and water protection ( ).

Splicing Fiber Optic Cables

Splicing is the process of joining two fiber optic cables to create a continuous optical path. In a distribution box:

• Fusion splicing is commonly used for permanent, low-loss connections.
• Mechanical splicing may be used for temporary or quick connections.
• Spliced fibers are secured in splice trays with protective sleeves to prevent damage and maintain bend radius ( ).
• The box allows for organized separation of fibers into pigtails, which connect to adapters or patch panels ( ).

Installation and Maintenance

• FDBs are typically mounted in 19″ network cabinets, server racks, or wall-mounted enclosures ( ).
• Proper capacity planning is essential: boxes can support 8 to 96 fiber ports or more, and reserving 20–30% headroom allows for future expansion ( ).
• Maintenance involves accessing the splice trays, reconnecting patch cables, or adding new fibers without disturbing existing connections ( ).

Benefits

• Protects fibers from environmental damage and mechanical stress.
• Organizes and manages fiber connections for easy maintenance.
• Supports network scalability and efficient deployment of active components.
• Ensures stable and reliable optical signal transmission ( ). In summary, a fiber distribution box with proper splicing and cable management is essential for maintaining a reliable, organized, and scalable fiber optic network. It combines mechanical protection, organized routing, and flexible connectivity to support both current and future network needs.
