Fiber Optic Cable Core Identification

Fiber optic cables and cores are identified using standardized color codes (TIA/EIA-598-C) for jackets, buffer tubes, and individual fibers, enabling accurate tracing, splicing, and connector matching.

Fiber Cable Identification

Outer Jacket Color: The first visual cue for identifying fiber type is the cable jacket color. Standard colors indicate fiber mode and performance:

• Yellow: Single-mode (OS2)
• Orange: Multimode OM1/OM2
• Aqua: Multimode OM3/OM4
• Emerald Green: OM5 wideband multimode
• Black: Typically outdoor cables; always check printed legends for fiber type . Connector Color: Fiber connectors also follow color conventions to indicate polish type and mode:

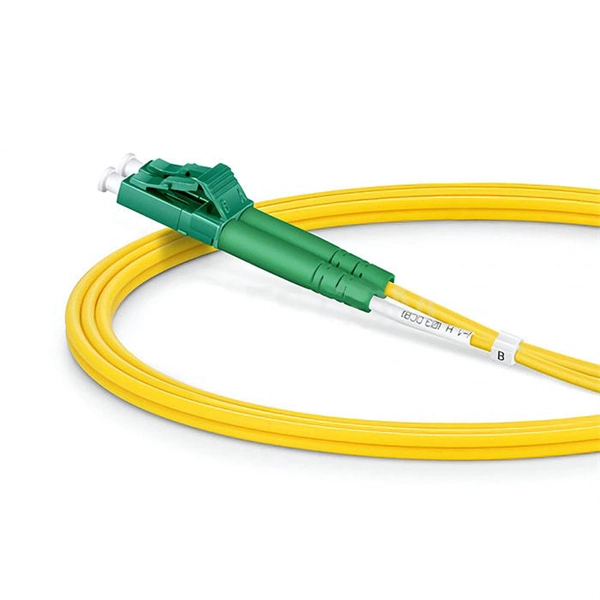

• Green boot: APC (angled) connector
• Blue boot: UPC (flat) connector
• Beige or Aqua: Multimode connectors .

Fiber Core Identification

12-Color Sequence: Individual fibers inside multi-fiber cables are color-coded in a repeating 12-color sequence for easy identification:

1. Blue
2. Orange
3. Green
4. Brown
5. Slate (Gray)
6. White
7. Red
8. Black
9. Yellow
10. Violet
11. Rose (Pink)
12. Aqua For cables with more than 12 fibers, binder groups or buffer tubes are used. Each tube is assigned a color, and fibers inside follow the 12-color sequence. For example, in a 48-fiber cable:

• Tube 1 (Blue) contains fibers 1–12
• Tube 2 (Orange) contains fibers 13–24
• Tube 3 (Green) contains fibers 25–36
• Tube 4 (Brown) contains fibers 37–48 . High-Count Cables (>12 fibers): To identify a specific fiber, divide the fiber number by 12 to determine the tube, then locate the fiber within that tube. For instance, Fiber #34 is the 10th fiber in the 3rd tube (Green tube), which corresponds to Violet . Ribbon Fiber Identification: Ribbon cables use the same 12-color sequence applied to each ribbon. A 12-fiber ribbon has fibers 1–12 in standard order, while smaller ribbons (e.g., 4-fiber) use the first four colors (Blue, Orange, Green, Brown), .

Practical Tips

• Always verify fiber type using jacket color and printed legends, especially for outdoor or hybrid cables.
• Use standardized labeling in patch panels and splice trays to prevent miswiring.
• For high-density installations, consider pre-labeled or machine-readable fiber solutions to reduce errors .
• When splicing or terminating, follow the 12-color sequence to maintain consistency and avoid cross-connections. By adhering to TIA/EIA-598-C standards, technicians can efficiently manage fiber networks, reduce installation errors, and ensure reliable performance across single-mode and multimode systems .
