How to wire the fiber optic distribution box pigtail

Wiring a fiber optic distribution box pigtail involves installing adapters, splicing pigtails to incoming fibers, and organizing them within the box to ensure minimal signal loss and proper cable management.

Step-by-Step Wiring Process

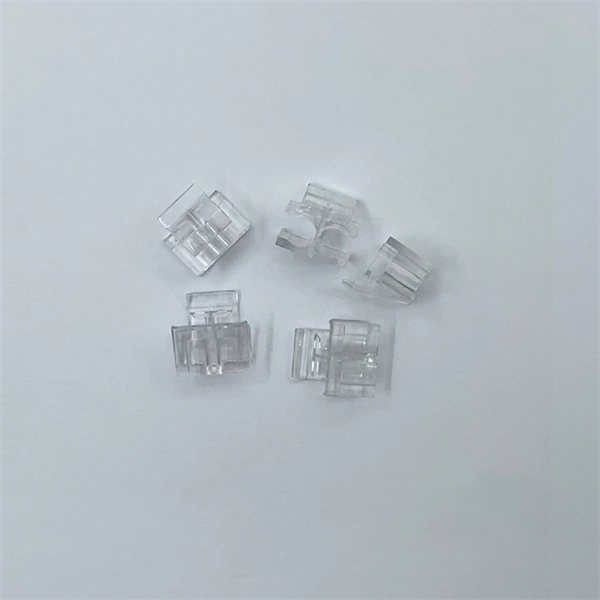

1. Prepare the Distribution Box Mount the fiber optic distribution box securely on the wall or rack using expansion bolts or screws, ensuring it is level and accessible for future maintenance ( ). Open the box and remove any protective covers from the adapter slots ( ). 2. Install Adapters Insert the appropriate fiber optic adapters (LC, SC, ST, etc.) into the adapter slots. These adapters will serve as the connection points for the pigtail connectors ( ). 3. Prepare Pigtails Fiber optic pigtails have a pre-terminated connector on one end and a bare fiber on the other. Strip the protective coating from the bare end carefully, clean the fiber, and prepare it for splicing ( ). 4. Splice Pigtails to Incoming Fibers Use either fusion splicing or mechanical splicing to connect the bare end of the pigtail to the incoming fiber optic cable. Fusion splicing is preferred for lower signal loss and higher reliability ( ). Ensure the splice is protected in a splice tray or sleeve within the box. 5. Route and Secure Fibers Organize the pigtails neatly inside the distribution box, maintaining proper bend radius to prevent fiber damage. Use fiber routing guides or trays to separate and secure fibers, avoiding overlaps or tangles ( ). 6. Connect Pigtail Connectors to Adapters Once spliced and routed, plug the connectorized end of each pigtail into the corresponding adapter. Verify that each connection matches the intended port or device ( ). 7. Test the Connections After wiring, test each fiber link using an optical power meter or OTDR to ensure minimal attenuation and proper signal transmission ( ). 8. Close and Label the Box Secure the distribution box cover and label each port for easy identification and maintenance. Proper labeling helps prevent confusion during future troubleshooting or expansion ( ).

Best Practices

• Maintain a minimum bend radius for all fibers to prevent signal loss or breakage.
• Keep pigtails organized and separated to avoid tangling.
• Use high-quality pigtails and splicing equipment to ensure optimal performance.
• Plan the layout of the distribution box to allow easy access to all fibers and adapters ( ). By following these steps, you can wire a fiber optic distribution box pigtail efficiently, ensuring reliable connections and organized fiber management.
