Indoor Monitoring Distribution Box Configuration Requirements

Indoor distribution boxes must be installed securely, wired neatly, equipped with protective devices, and comply with safety standards to ensure reliable and safe power distribution.

Installation Requirements

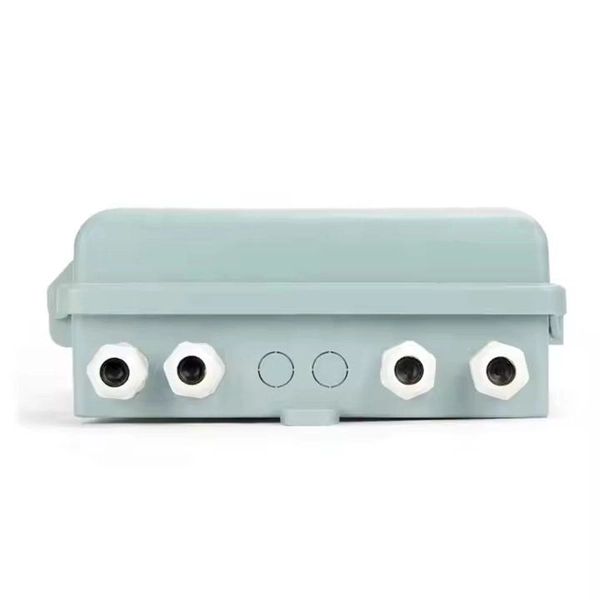

Indoor distribution boxes should be installed in dry, accessible areas with good ventilation, typically at a height of around 1.5 meters for easy maintenance and monitoring . The enclosure should be made of non-combustible materials such as steel or high-quality thermoplastics like polycarbonate or ASA, providing protection against dust, moisture, and physical damage . Flush-mounted covers should fit closely to the wall, and box openings must match conduit diameters to prevent gaps or exposure . Proper support and secure mounting are essential to prevent movement or vibration.

Wiring and Electrical Configuration

Wiring inside the box must be neat, untwisted, and properly insulated, with connections tight enough to avoid damaging wire cores . The cross-sectional area of wires should meet design specifications: typically no less than 2.5 mm² for current-carrying circuits and 1.5 mm² for other circuits . Circuits of different voltage levels, AC/DC lines, and control lines should be bundled separately and clearly identified to prevent interference and simplify maintenance . No more than two wires should connect to a single terminal, and anti-loosening washers should be used to secure connections .

Components and Protection

A standard indoor distribution box includes circuit breakers, residual current circuit breakers (RCCBs), isolators, bus bars, neutral links, and surge protective devices . Each circuit should have its own protection to prevent overloads, short circuits, or ground faults . For monitoring purposes, smart DB boxes may include energy monitoring units, digital displays, IoT connectivity, and real-time analytics to track power usage and detect anomalies . Modular designs with DIN rails allow easy addition or reconfiguration of breakers and monitoring devices.

Compliance and Safety

All components should be UL/CE-certified and comply with local electrical codes such as NEC or IEC standards . Proper labeling of circuits is critical for safety and troubleshooting, ensuring that each circuit is clearly marked . Grounding and bonding must be correctly implemented, connecting all metallic parts and enclosures to the protective conductor to prevent electrical hazards . Before energizing the system, visual inspections and multimeter tests should be performed to verify correct installation and insulation integrity .

Maintenance and Future-Proofing

Regular inspections and maintenance are essential to ensure long-term reliability . Modular or slightly oversized boxes are recommended to accommodate future electrical expansions, such as additional circuits, EV chargers, or smart-home systems . Proper documentation of installation details, circuit mapping, and component specifications facilitates troubleshooting and upgrades. By following these configuration requirements, indoor monitoring distribution boxes can provide safe, efficient, and reliable power distribution while supporting modern monitoring and energy management needs.
