How to pair fiber optic cables with optical modules

To connect fiber optic cables to optical modules, clean and inspect the connectors, align them properly with the SFP port, insert gently until seated, and verify the link status.

Step 1: Prepare the Fiber and Module

• Inspect and clean connectors: Use a specialized fiber optic cleaner or isopropyl alcohol wipes to remove dust or debris from the fiber ferrule and the SFP module port, as even microscopic particles can cause signal loss or back reflection .
• Check compatibility: Ensure the fiber type matches the module—single-mode for long-reach links, multimode for short-reach connections .

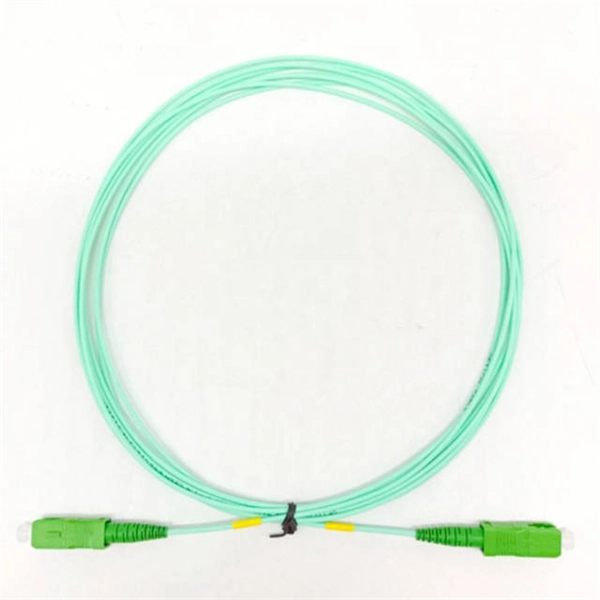

• Verify connector type: Common connectors include LC, SC, or MPO; ensure the patch cord matches the SFP module port .

Step 2: Align and Insert the Fiber

• Align the connector key with the SFP module slot. For duplex or MPO connectors, ensure correct transmit/receive orientation .
• Insert gently until you hear or feel a click, indicating the fiber is fully seated. Avoid pulling on the cable boot or bending the fiber excessively .
• Use strain relief if available to prevent micro-bending near the module, which can degrade signal quality .

Step 3: Verify the Connection

• Check link status on the host device (switch, router, or server) using diagnostic interfaces or optical power readings .
• Label fibers for polarity management and future maintenance .
• Maintain bend radius: Do not exceed the recommended bend radius (typically 30 mm for standard fibers) to prevent signal loss .

Step 4: Safety and Handling

• Avoid electrostatic discharge (ESD): Handle SFP modules carefully to prevent damage to sensitive optical components .
• Use protective dust caps when modules or cables are disconnected .
• Follow manufacturer guidelines for insertion and removal to prevent port damage and ensure reliable operation . By following these steps—preparation, careful alignment, gentle insertion, and verification—you can ensure a robust, low-loss optical connection suitable for high-speed data networks, data centers, and telecom applications .
