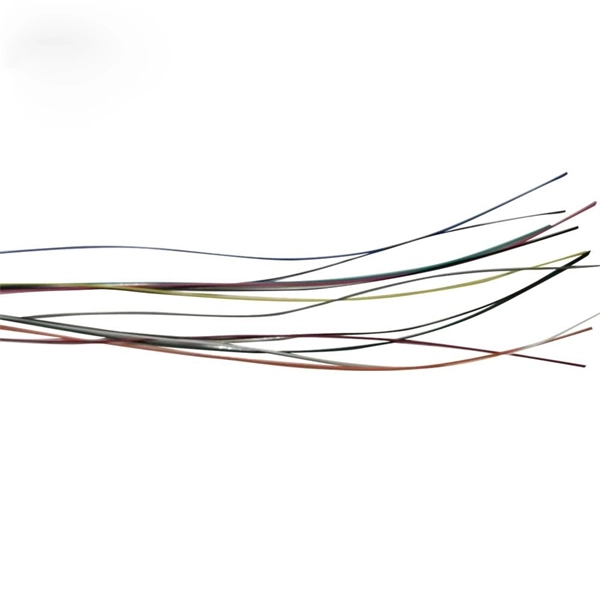

Fiber Optic Cable Spot Check Methods

A fiber optic cable spot check test quickly verifies cable continuity, detects faults, and measures signal loss using tools like a Visual Fault Locator (VFL), power meter, or OTDR.

Purpose of a Spot Check Test

Spot check testing is performed to ensure the fiber optic cable is intact, free of breaks, bends, or excessive attenuation, and ready for network operation. Regular spot checks help minimize downtime, extend cable life, and support maintenance or upgrades in fiber networks .

Common Tools for Spot Check Testing

1. Visual Fault Locator (VFL): A VFL emits a visible red light (around 650 nm) through the fiber. Any breaks, severe bends, or poor splices will cause light to leak, making faults visible along the cable .
2. Power Meter and Light Source: This method measures end-to-end signal loss (attenuation) by sending a known light signal through the fiber and measuring the output. It is highly accurate for verifying signal integrity .
3. Optical Time-Domain Reflectometer (OTDR): OTDR testing sends pulses of light down the fiber and analyzes reflections to locate faults, bends, or splice losses along the cable length .

Step-by-Step Spot Check Using a VFL

1. Prepare the Fiber: Clean the fiber ends and VFL connector using lint-free wipes or isopropyl alcohol to avoid contamination .
2. Connect the VFL: Plug the VFL into one end of the fiber. For bare fibers, use an adapter or hold the fiber against the VFL connector .
3. Activate the VFL: Turn on the device and observe the fiber. Light should appear at the far end or leak at fault points.
4. Inspect the Cable: Look for visible light leakage, which indicates breaks, cracks, or severe bends. If no light appears at the far end, the fiber may be broken or improperly connected .
5. Document Results: Record the location and type of any faults for maintenance or repair planning .

Best Practices

• Always wear safety glasses to protect eyes from laser light .
• Avoid exceeding the minimum bend radius to prevent permanent damage .
• Clean and inspect connectors before testing to ensure accurate results .
• Maintain proper documentation to track cable health and compare future tests .

Summary

A fiber optic spot check test is a quick, effective method to verify cable integrity and performance. Using a VFL for visual inspection, a power meter for attenuation measurement, or an OTDR for detailed fault location ensures that fiber networks remain reliable and efficient. Regular spot checks are essential for preventive maintenance and troubleshooting in modern fiber optic systems .
